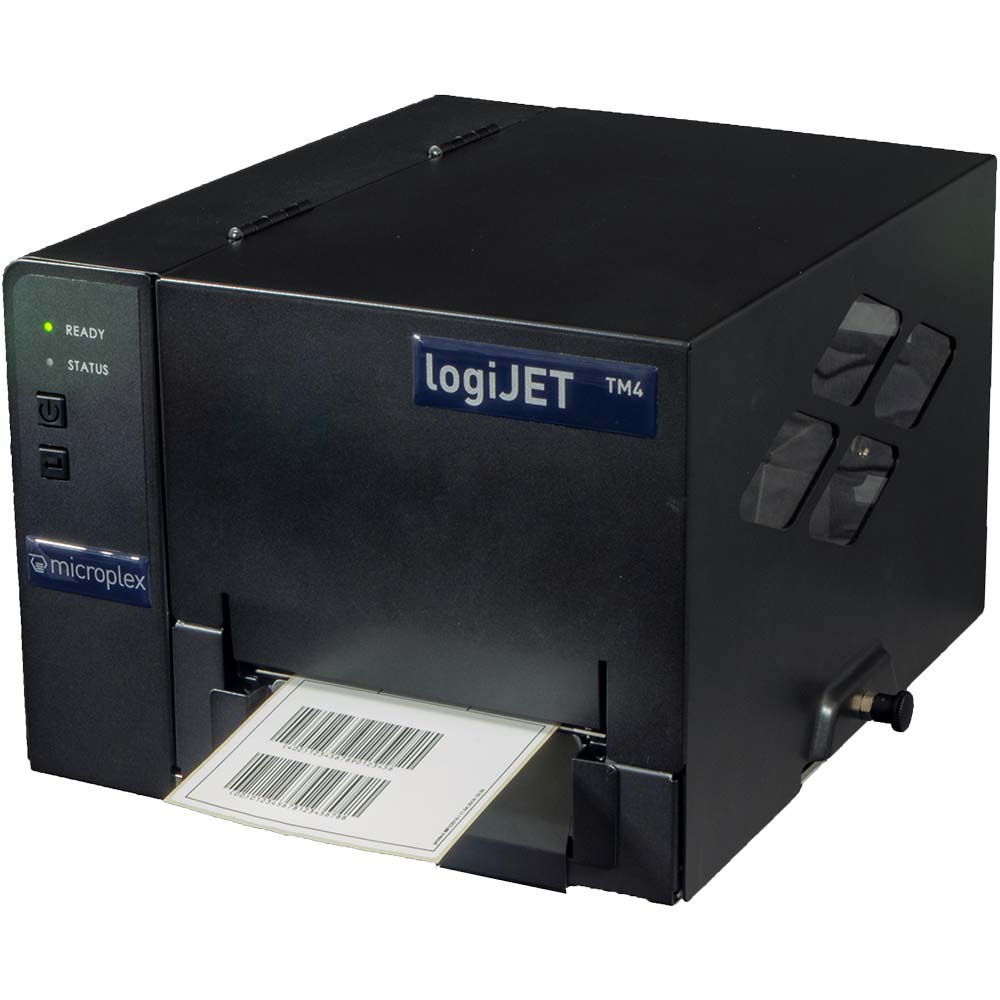

LogiJET TM4 Thermal Printer
The logiJET TM4 stands for wireless mobility in production and warehouse logistics. It has a DC power supply for battery connection with 12 V, 24 V, 48 V DC and an AC power supply for connection to voltages of 100 – 240 V AC.
With the optional WLAN, the logiJET TM4 mobile thermal printer from Microplex can be used flexibly at any location.
Further interfaces such as USB, Centronics or the serial RS232 / RS422 extend the range of applications enormously.
Thus, the logiJET TM4 can be used both as a stationary printer at a fixed location or, if the application changes, it can also be attached to a forklift truck or mobile workstation.
At the same time, the printer can be used for both direct thermal printing and thermal transfer. So you get a cost-effective “4-in-1 just-in-time printer” that can be perfectly tailored to your application.
| Perfect for: |
|
Robust Metal Housing & Useful Accessories
Metal Housing
The robust metal housing withstands the toughest industrial use, is shock-resistant and effectively protects the inside label roll from dust and dirt. This ensures a long product life and trouble-free operation.
Optional Mounting Plate
Expand the mobile label printer with an optional mounting plate. This allows it to be easily mounted on mobile platforms such as fork trucks.
The device can be removed from the vehicle very easily for e.g. maintenance purposes with the help of a quick release device without having to loosen screws.
The vibration dampers, which are specially adapted to the unit, effectively decouple the mounting plate from vibrations or impacts of the mounting surface.
Various Connection Options
By default, the logiJET TM4 has an USB and Ethernet interface. In addition, a serial RS232 or RS422 and an IEEE 1284 (Centronics) interface are optionally available.
An optional WIFI interface is available for the connection to modern wireless networks. This is connected directly to the Microplex Multi Intelligence Controller.
The Microplex WiFi Interface offers numerous features:
- WIFI 802.11 b/g/n
- Up to 150 Mbps Transfer Rate
- WPA/ WPA2, WPA – PSK/WPA2 – PSK, WEP (64 bit, 128 bit) ecrypttion
- IEEE 802.1X Authentication Standard
The logiJET TM4 understands more than 40 printer languages (emulations), including laser printer languages such as PCL5 and Kyocera Prescribe.
Even the major thermal printer languages such as Datamax, Zebra ZPL, Printronix IGP processes the logiJET TM4 without complaint.
Printer Web Interface
The logiJET TM4 can be conveniently configured and monitored via the printer-internal website. The individual printer parameters are accessible on clearly arranged single pages. Thus, the logiJET TM4 can be very easily adapted to the respective application.
Printer status messages can be retrieved via SNMP or the optional status-out function. Thus, the control center or IT is informed at all times about the current state of the printer and can react immediately in case of faults and initiate actions in a timely manner, without a direct presence at the printer location is necessary.
|
Highlights & Features |
|
